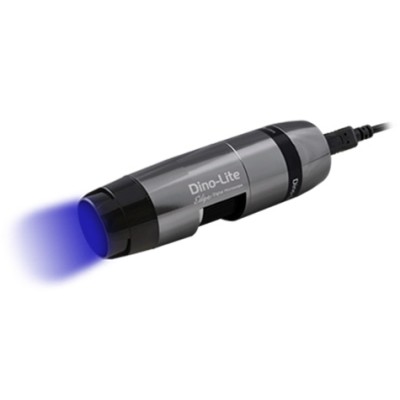

AM4117MT-G2FBW

Brand:
Product Code: AM4117MT-G2FBW

With 465nm excitation light and a 510-545nm emission bandpass filter range, AM4117MT-G2FBW is the ideal solution for the selective isolation and observation of samples with green fluorescence.

The interchangeable caps provide adaptability to numerous applications with alternative lighting or object interface. The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

Note:The included caps may vary per model. Please contact your local distributor or reseller for purchasing additional caps.


USBMag 10 220 FLChousingresfluorlockcap


MAGNIFICATION RATEWORKING DISTANCE *FIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
Listed values may differ slightly
* Without front cap     Unit = mm
20 59.5 19.5 14.7 5.36
30 32.9 13.0 9.8 2.58
40 20.2 9.8 7.3 1.56
50 13.2 7.8 5.9 1.07
60 9 6.5 4.9 0.79
70 6.4 5.6 4.2 0.62
80 4.8 4.9 3.7 0.5
90 4 4.3 3.3 0.42
100 3.5 3.9 2.9 0.36
110 3.3 3.6 2.7 0.31
120 3.5 3.3 2.4 0.27
130 3.8 3.0 2.3 0.24
140 4.3 2.8 2.1 0.22
150 4.9 2.6 2.0 0.2
160 5.6 2.4 1.8 0.18
170 6.4 2.3 1.7 0.17
180 7.3 2.2 1.6 0.15
190 8.2 2.1 1.5 0.14
200 9.2 2.0 1.5 0.13
210 10.2 1.9 1.4 0.13
220 11.3 1.8 1.3 0.12

light

Lighting
Light/ LED type 465nm excitation + white
Number of LEDs 7 Blue + 1 White
LED on/off switchable: Yes
Infrared filter No
Diffuser available No
Emission filter 510-545nm emission bandpass filter range
Polarizer No
Fluorophores GFP, FITC
Optics
Magnification 10x ~ 220x
Macro zoom No
Working distance Standard
Sensor
Sensor type CMOS
Resolution 1.3M pixels (1280x960)
Maximum frame rate 30fps in 1.3MP, MJPEG 30fps in VGA, MJPEG
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Housing
Housing material Metal Housing
Magnification lock Yes
Dimensions 10.5cm (H) x 3.3cm (D)
Weight 90g
Features
Special feature No
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, carry pouch, software CD, calibration target, user manual
Warranty information 2 years European warranty
Regulatory approval: CE, FCC, ROHS, UKCA
Price range €1000,00 - €1200,00
