AM4113T-FVW

Brand:
Product Code: AM4113T-FVW

The VW series has two types of LED lights that are switchable between white and UV light. This model has a filter to filter out the returning UV light so that an image with natural colors can be obtained.


USBMag 10 2205 megapixel EDOFEDRAMR FLCFLC


» Also available in a version with ~375nm LEDs (model AM4113T-FV2W)

MAGNIFICATION RATEWORKING DISTANCEFIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
Listed values may differ slightly       Unit = mm
20 48.7 19.6 15.6 3.6
30 21.7 13.0 10.4 1.9
40 9.0 9.8 7.8 -
50 1.9 7.8 6.3 0.88
60 -2.3 6.5 5.2 -
220 -0.1 1.8 1.4 0.20
230 1.0 1.7 1.4 -
240 2.1 1.6 1.3 -

Lighting

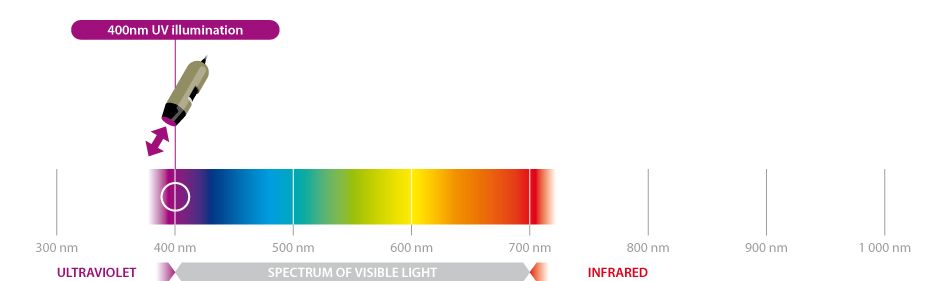

Light/ LED type 395 nm UV + white
Number of LEDs 4+4
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Emission filter Yes, Emission barrier filter 400 nm
Polarizer No
Optics
Magnification 10x ~ 70x, 200x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 105g
Cable length 1.8m
Features
Special feature No
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, carry pouch, software CD, calibration target, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €400,00 - €600,00
