AM4115-FKT

Brand:
Product Code: AM4115-FKT

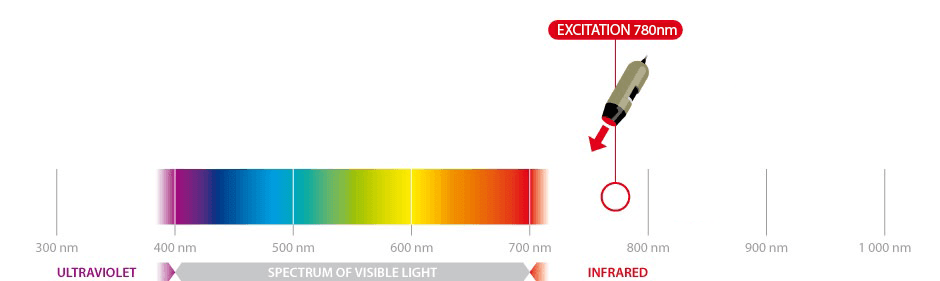

The AM4115-FKT has special lighting with LED's emitting IR light around the 780 nm spectrum.


USBMag 10 2205 megapixel EDOFEDRAMR FLC


The Dino-Lite AM4115-FKT has special lighting with LED's emitting UV light around the 780 nm spectrum. The Dino-Lite Edge models provide superior image quality and a high level of flexibility due to the adaptable cap design.

» Also available with ~850nm or 940nm LEDs (model AM4115-FJT/FIT).

MAGNIFICATION RATEWORKING DISTANCE FIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
Listed values may differ slightly
        Unit = mm
20 60.2 19.5 15.6 2.5
30 33.5 13.0 10.4 1.8
40 20.9 9.8 7.8 1.5
50 13.9 7.8 6.3 -
60 9.7 6.5 5.2 -
70 7.1 5.6 4.5 1.0
80 5.5 4.9 3.9 -
90 4.5 4.3 3.5 -
100 4.1 3.9 3.1 -
110 4.0 3.6 2.8 -
120 4.1 3.3 2.6 -
130 4.5 3.0 2.4 -
140 5.0 2.8 2.2 -
150 5.6 2.6 2.1 -
160 6.3 2.4 2 -
170 7.1 2.3 1.8 -
180 8.0 2.2 1.7 -
190 8.9 2.1 1.6 -
200 9.9 2.0 1.6 -
210 10.9 1.9 1.5 -
220 11.9 1.8 1.4 0.1

Lighting
Light/ LED type ~780 nm Infrared
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR pass filter
Diffuser available No
Emission filter No
Polarizer No
Optics
Magnification 20x ~ 220x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 100g
Cable length 1.8m
Features
Special feature No
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, carry pouch, software CD, calibration target, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €600,00 - €800,00
