DermaScope® Polarizer

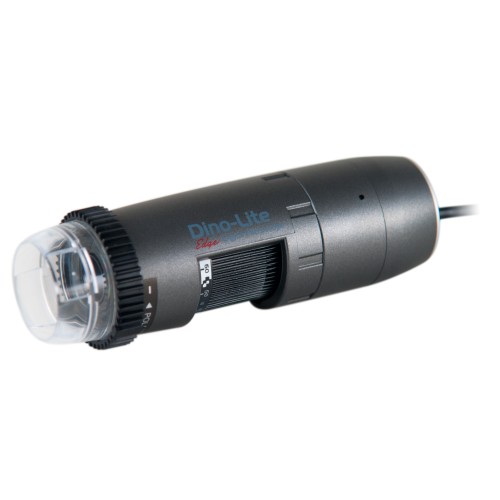

The Dino-Lite DermaScope® Polarizer (MEDL4DW) has a 1.3 megapixel camera that can capture sharp images of the skin and features a built-in and fully adjustable polarization filter to greatly reduce the gloss effect of the skin.

The Dino-Lite DermaScope® Polarizer is suitable for any physician or dermatologist or skin specialist. For those who put even more demands on the equipment and want to have the latest features and capabilities, the DermaScope® Polarizer HR is also available (MEDL7DW)


USBMag 10 2205 megapixel

EDOFEDRAMR

PolariserFLC


Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Polarizer Yes, linear
Optics
Magnification 10-50x
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Housing
Housing material Composite/plastic housing
Magnification lock Yes
Dimensions 10.5 cm (L) x 3.2 cm (D)
Weight 105 g
Cable length 1.8m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
Information
Package contents Microscope, carry pouch, software CD, user manual, N3C-C- Closed cap, N3C-L- Long cap
Warranty information 2 years European warranty
Regulatory approval Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745
Price range €300,00 - €500,00
