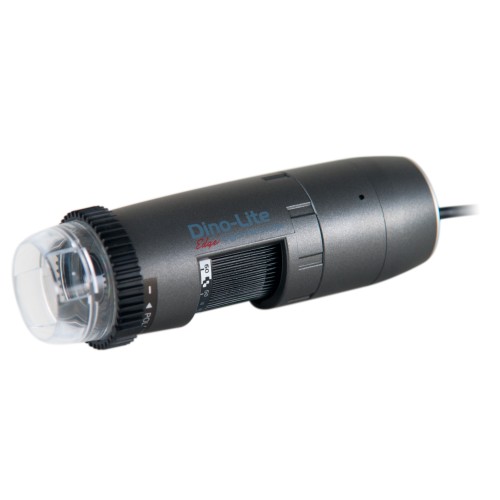

DermaScope® Polarizer (MEDL4DW)

Le Dino-Lite DermaScope® Polarizer (MEDL4DW) possède un appareil photo de 1,3 mégapixels qui peut capturer des images nettes de la peau et dispose d'un filtre de polarisation intégré et entièrement réglable pour réduire considérablement l'effet de brillance de la peau.

Le Dino-Lite DermaScope® Polarizer est adapté à tout médecin ou dermatologue ou spécialiste de la peau. Pour ceux qui mettent encore plus de demandes sur l'équipement et qui veulent avoir les dernières fonctionnalités et capacités, le DermaScope® Polarizer HR est également disponible (MEDL7DW)


USBMag 10 2205 megapixel

EDOFEDRAMR

PolariserFLC


Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Polarizer Yes, linear
Optics
Magnification 10-50x
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Housing
Housing material Composite/plastic housing
Magnification lock Yes
Dimensions 10.5 cm (L) x 3.2 cm (D)
Weight 105 g
Cable length 1.8m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
Information
Package contents Microscope, carry pouch, software CD, user manual, N3C-C- Closed cap, N3C-L- Long cap
Warranty information 2 years European warranty
Regulatory approval Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745
Price range €500,00 - €700,00
