AM73115MTF

Brand: Dino-Lite
Product Code: AM73115MTF

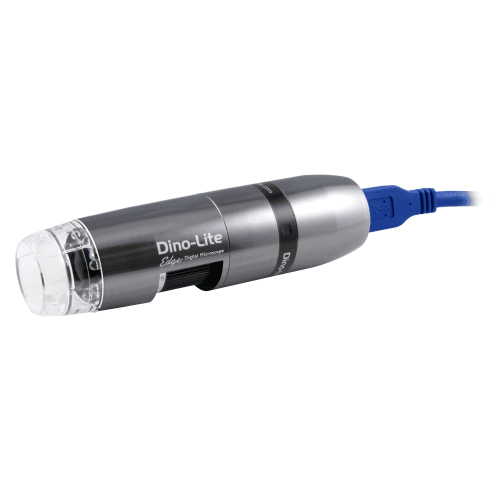

The Dino-Lite AM73115MTF is a special model within the High Speed range with USB 3.0 connection. It offers superb uncompressed image quality and color reproduction in a robust, compact and appealing metal housing. The AM73115MTF (“F” stands for Far) offers an extra-large working distance.

USB 3.0 adds a new transfer mode called "SuperSpeed" (SS) capable of transferring data up to 5Gbits/s (625MB/s). Dino-Lite models with USB 3.0 offer an image transfer speed of up to 45FPS at a 1280 x 960 resolution. SuperSpeed allows you to take advantage of the full power of the Dino-Lite Edge Series optics including improved colour accuracy and image quality.


Mag 10 2205 megapixel

EDOFEDRAMR

FLC


The Dino-Lite AM73115MTF is a USB 3.0 model with a magnification range of 10x - 70x and an Extra Long Working Distance of up to 48 cm. At a 70x magnification the distance to the object can reach an unparalleled 108 mm. This model is member of the Dino-Lite Edge family with the latest, cutting-edge optics, an unmatched 5 megapixel sensor and several special features such as Flexible LED Control (FLC), full metal body, extensive measurement functions, calibration, exchangeable front caps and more.

The AM73115MTF is a special product within the Dino-Lite USB 3.0 range. For professionals who are looking for a large working distance and high speed data transfer combined with the best available image quality, this is the model of choice.

MAGNIFICATION RATEWORKING DISTANCEFIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
Listed values may differ slightly       Unit = mm
10 503 39.1 31.3 31.49
20 271 19.5 15.6 8.67
30 196 13.0 10.4 4.20
40 159 9.8 7.8 2.56
50 135 7.8 6.3 1.76
60 120 6.5 5.2 1.31
70 108 5.6 4.5 1.03
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available Yes (N3C-D optional)
Emission filter No
Polarizer No
Optics
Magnification 10-70x
Macro zoom No
Working distance Long
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 5 Megapixel (2592x1944)
Maximum frame rate 45fps (max 20fps video recording)
Compatibility
Interface USB 3.0, Cable included**
Operating system Windows7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV (max 1.3MP)
Imaging standards DirectShow, UVC
Wifi No
Housing
Housing material Metal housing
Magnification lock Yes
Dimensions 11.9cm (L) x 3.3cm (H)
Weight 110g
Cable length 1.8m
Features
Special feature Flexible LED Control (FLC), Extra Long Working Distance
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe Yes
Information
Package contents Microscope, carry pouch, software CD, user manual, quick guide, calibration target
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €750,00 - €1000,00
Note **Dino-Lite USB 3.0 models use a custom USB-A and USB-C cable that is specifically designed for Dino-Lite
