AM73515MT8A

Brand:
Product Code: AM73515MT8A

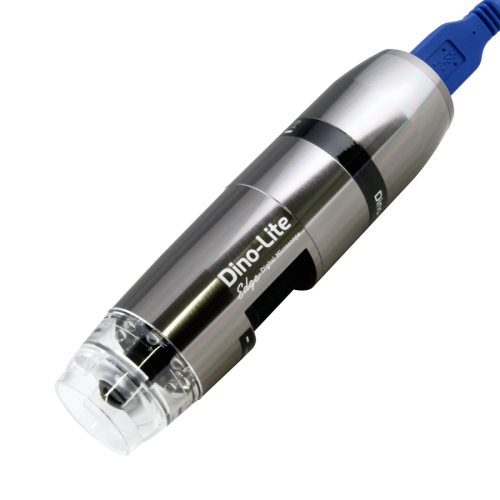

The AM73515MT8A is a 5MP Dino-Lite Edge Series USB 3.0 microscope that has a magnification range of 700-900x with built-in coaxial illumination. By using the Flexible LED Control (FLC), this model is capable of switching between or mixing, brightfield and coaxial illumination.

USB 3.0 adds a new transfer mode called "SuperSpeed" (SS) capable of transferring data up to 5Gbits/s (625MB/s). Dino-Lite models with USB 3.0 offer an image transfer speed of up to 45FPS at a 1280 x 960 resolution. SuperSpeed allows you to take advantage of the full power of the Dino-Lite Edge Series optics including improved colour accuracy and image quality.


USBMag 10 2205 megapixelEDOFEDRAMRPolariserexch-cap


The coaxial illumination technique reveals details that are very difficult to see under normal light, for example when inspecting wafer plates, microchips or other microelectronics. The AM73515MT8A includes the Automatic Magnification Reading (AMR) feature which automatically detects and displays the magnification in the included Dino-Lite software.These unique features make the Dino-Lite AM73515MT8A a great inspection tool for material analysis, electronics inspection, or any similar application that requires high magnification, coaxial illumination, high speed, versatility and mobility. The Dino-Lite AM73515MT8A is bundled with the user-friendly DinoCapture 2.0 software for Windows.

For this model it includes functions such as Automatic Magnification Reading (AMR), Flexible LED Control (FLC), calibration, measurement, capturing & annotating images, and recording video. When focusing at such high magnification it is recommended to use a high-precision stand. The Dino-Lite RK-10A for example is a great add-on, it is a sturdy and stable high-end stand solution constructed of resilient stainless steel and lightweight aluminum and offers a very precise fine-focus adjustment.

MAGNIFICATION RATE WORKING DISTANCE* FIELD OF VIEW(X) FIELD OF VIEW(Y) DEPTH OF FIELD

700 6.4 0.56 0.400 0.01
750 6.3 0.52 0.375 0.01
800 6.1 0.48 0.350 0.009
850 6.0 0.46 0.330 0.009
900 5.9 0.43 0.315 0.008
Listed values may differ slightly  *Without front cap     Unit = mm



Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Emission filter No
Polarizer No
Optics
Magnification 700-900x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 5 Megapixel (2560x1920)
Maximum frame rate 45fps (max 20fps video recording)
Compatibility
Interface USB 3.0, Cable included**
Operating system Windows 7, 8, 10 & 11, MacOS 10.11.16 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV (max 1.3MP)
Imaging standards DirectShow, UVC
Wifi No
Housing
Housing material Metal housing
Magnification lock Yes
Dimensions 11.9cm (L) x 3.3cm (H)
Weight 110g
Cable length 1.8m
Features
Special feature Automatic Magnification Reading (AMR), Flexible LED Control (FLC), Coaxial illumination
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe Yes
Information
Package contents Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover N3C-C, N3C-E, N3C-O
Warranty information 2 years European warranty
Regulatory approval CMOS, UKCA – available upon request – marketing@dino-lite.eu
Price range €1400,00 - €1600,00
Note **Dino-Lite USB 3.0 models use a custom USB-A and USB-C cable that is specifically designed for Dino-Lite
