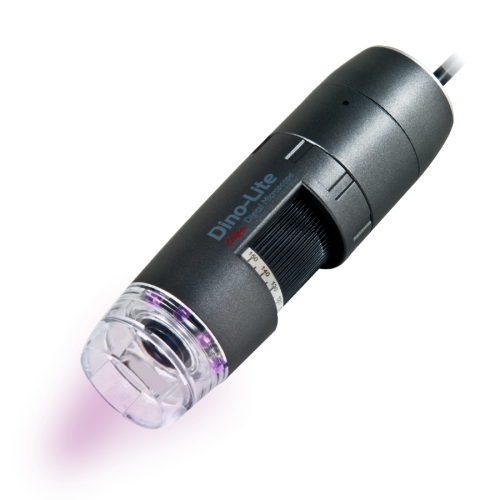

AM4115-FUT - EDGE

Marca:
Codice del prodotto: AM4115-FUT - EDGE

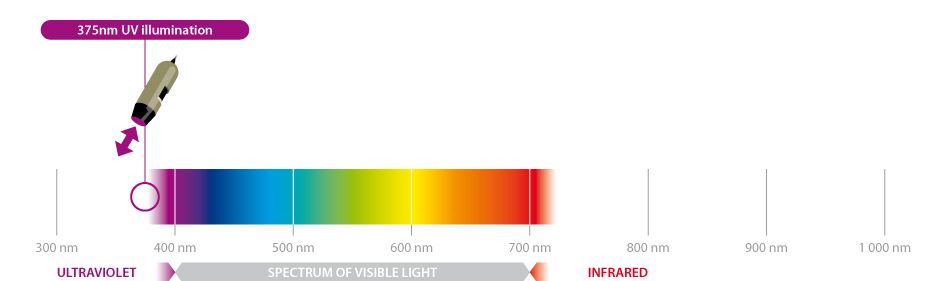

L'AM4115-FUT ha un'illuminazione speciale con l'emissione di luce LED UV nello spettro di circa 375 nm.


USBMag 10 2205 megapixel EDOFEDRAMR FLCFLC


I modelli Dino-Lite Edge garantiscono immagini di qualità superiore e un elevato livello di flessibilità grazie al design con cappuccio adattabile.

»  Disponibile anche con LED 390-400nm (modello AM4115-FVT).

MAGNIFICATION RATEWORKING DISTANCEFIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
Listed values may differ slightly
* Without front cap     Unit = mm
20 60.2 19.5 15.6 2.5
30 33.5 13.0 10.4 1.8
40 20.9 9.8 7.8 1.5
50 13.9 7.8 6.3 -
60 9.7 6.5 5.2 -
70 7.1 5.6 4.5 1.0
80 5.5 4.9 3.9 -
90 4.5 4.3 3.5 -
100 4.1 3.9 3.1 -
110 4.0 3.6 2.8 -
120 4.1 3.3 2.6 -
130 4.5 3.0 2.4 -
140 5.0 2.8 2.2 -
150 5.6 2.6 2.1 -
160 6.3 2.4 2.0 -
170 7.1 2.3 1.8 -
180 8.0 2.2 1.7 -
190 8.9 2.1 1.6 -
200 9.9 2.0 1.6 -
210 10.9 1.9 1.5 -
220 11.9 1.8 1.4 0.1

Lighting
Light/ LED type ~375nm UV
Number of LEDs 4
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available Yes (N3C-D included)
Emission filter Yes, Emission barrier filter 375 nm
Polarizer No
Optics
Magnification 20-220x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 100g
Cable length 1.8m
Features
Special feature No
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, carry pouch, software CD, calibration target, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €500,00 - €700,00
