AM4113T

Marca: Dino-Lite
Codice del prodotto: AM4113T

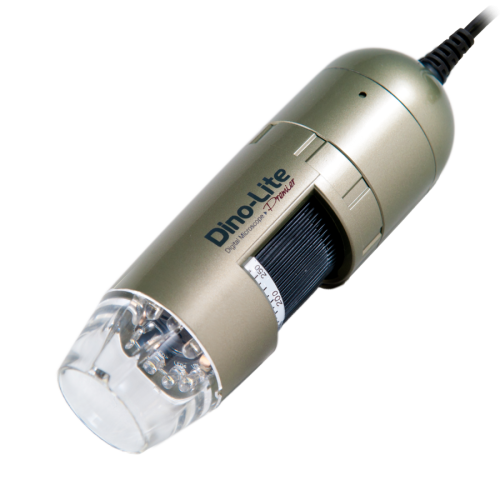

Dino-Lite AM4113T è un microscopio digitale palmare professionale conveniente e facile da usare che fornisce immagini di qualità superiore con fino a 200x di ingrandimento ottico.


USBMag 10 220Illxx Mag 20 50 200EDOFEDRAMR Polariser


È dotato di un sensore ad alta qualità da 1.3 Megapixel con una qualità dell'immagine cristallina e una riproduzione naturale del colore, consentendovi di vedere e riprendere oggetti con il massimo livello di dettagli. Questo modello è dotato del software DinoCapture 2.0 per Windows e DinoXcope per MacOS, che vi consentono di calibrare le misurazioni sulle immagini scattate con Dino-Lite. AM4113T è la scelta più popolare per il controllo qualità in ambienti industriali, istruzione, uffici o nei laboratori.

MAGNIFICATION RATE WORKING DISTANCE FIELD OF VIEW(X) FIELD OF VIEW(Y) DEPTH OF FIELD
20 48.7 19.6 15.6 3.6
30 21.7 13.0 10.4 1.9
40 9.0 9.8 7.8
50 1.9 7.8 6.3 0.88
60 -2.3 6.5 5.2
220 -0.1 1.8 1.4 0.2
230 1.0 1.7 1.4
240 2.1 1.6 1.3
Listed values may differ slightly       Unit = mm
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Emission filter No
Polarizer No
Optics
Magnification 10-70x, 200x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7,8,10 & 11, MacOS 10.9 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 105g
Cable length 1.8m
Features
Special feature No
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, Carry pouch, software CD, calibration target, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €300,00 - €450,00
