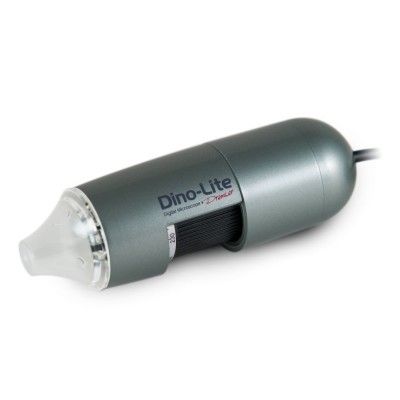

TrichoScope Basic (MEDL3H)

Le TrichoScope Dino-Lite Basic (MEDL3H) est un excellent instrument pour l'examen du cuir chevelu humain et pour l'analyse des cheveux, par exemple, pour la recherche de la perte de cheveux. Le chapeau spécial en forme de cône permet une séparation facile des cheveux sur la tête humaine. Avec le fort grossissement jusqu'à 200 fois un seul cheveu peut être visualisé avec beaucoup de détails.


USBMag 10 2205 megapixel EDOF

Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Polarizer No
Optics
Magnification 10-70x, 200x
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution VGA (640x480)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Housing
Housing material Composite/plastic housing
Magnification lock No
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 95 g
Cable length 1.8m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
Information
Package contents Microscope, carry pouch, software CD, ZT-Z-CC1 cap closure, user manual
Warranty information 2 years European warranty
Regulatory approval Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745
Price range €300,00 - €450,00
