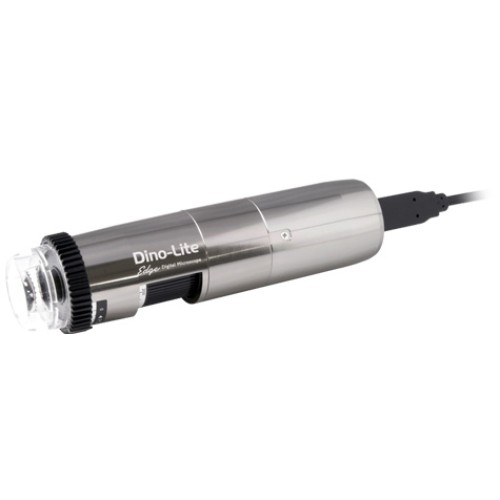

Élevant la qualité d'image à un niveau supérieur, le microscope numérique AM8117MZT de 8 mégapixels offre une résolution élevée et une fidélité des couleurs pour une expérience d'imagerie naturelle et détaillée. L'AM8117MZT inclut un polariseur pour réduire les reflets indésirables ainsi que l'eFLC pour maximiser l'ajustabilité de l'éclairage.
Les principales caractéristiques de l'AM8117MZT sont :
• 8 mégapixels
• Haute résolution optique
• Commande améliorée des LED flexibles (eFLC)
• Polariseur réglable
• Boîtier métallique robuste
• Grossissement de 10x à 220x
• Et plus...
MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW(X) | FIELD OF VIEW(Y) | DEPTH OF FIELD |
10 |
142.6 |
60.69 |
34.14 |
26.15 |
20 |
59.8 |
30.35 |
17.07 |
7.05 |
30 |
33.1 |
20.23 |
11.38 |
3.36 |
40 |
20.5 |
15.17 |
8.53 |
2.02 |
50 |
13.4 |
12.14 |
6.83 |
1.38 |
60 |
9.2 |
10.11 |
5.69 |
1.01 |
70 |
6.7 |
8.67 |
4.88 |
0.79 |
80 |
5.1 |
7.59 |
4.27 |
0.64 |
90 |
4.1 |
6.74 |
3.79 |
0.53 |
100 |
3.7 |
6.07 |
3.41 |
0.45 |
110 |
3.6 |
5.52 |
3.10 |
0.39 |
120 |
3.7 |
5.06 |
2.85 |
0.34 |
130 |
4.1 |
4.67 |
2.63 |
0.30 |
140 |
4.5 |
4.34 |
2.44 |
0.27 |
150 |
5.2 |
4.05 |
2.28 |
0.25 |
160 |
5.9 |
3.79 |
2.13 |
0.22 |
170 |
6.7 |
3.57 |
2.01 |
0.21 |
180 |
7.5 |
3.37 |
1.90 |
0.19 |
190 |
8.5 |
3.20 |
1.80 |
0.18 |
200 |
9.4 |
3.03 |
1.71 |
0.16 |
210 |
10.5 |
2.89 |
1.63 |
0.15 |
220 |
11.5 |
2.76 |
1.55 |
0.14 |
Listed values may differ slightly | * Without front cap | Unit = mm |
Lighting | |
---|---|
Light/ LED type | White |
Number of LEDs | 8 |
Optics | |
Magnification | 10x ~ 220x |
Working distance | 142.6 ~ 11.5 mm |
Sensor | |
Sensor type | CMOS |
Resolution | 8 Megapixel (3840 x 2160) |
Maximum frame rate | 10 fps at 8.0 MP, MJPEG 25 fps at 2.0 MP, MJPEG |
Compatibility | |
Interface | USB 2.0 |
Operating system | Windows 10/11 |
Supported image formats (Windows) | BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM |
Supported video formats (Windows) | WMV, FLV, SWF |
Housing | |
Housing material | Metal housing |
Dimensions | 130 mm (H) x 33 mm (D) |
Weight | 120 g |
Features | |
Measurement | Yes |
Calibration | Yes |
Microtouch sensor | Yes |
Information | |
Package contents | N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap) |
Warranty information | 2 years European warranty |
Regulatory approval: | CE, FCC, ROHS |
Price range | €1149,00 - €1249,00 |
