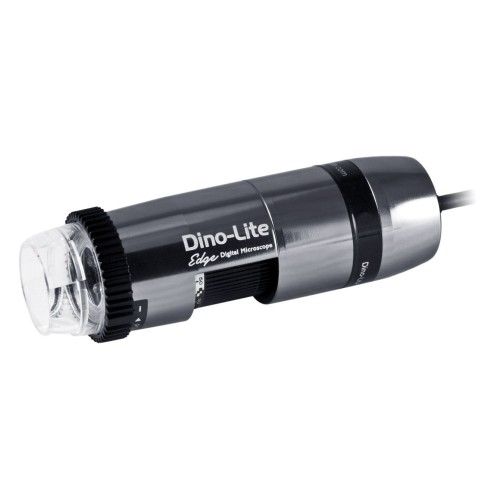

DermaScope® Polarizer HR (MEDL7DW)

Le Dino-Lite DermaScope® Polarizer HR (MEDL7DW) possède un appareil photo de 5 mégapixels pour capturer des images plus nettes avec plus de détails et dispose d'un filtre de polarisation intégré et entièrement réglable pour réduire considérablement l'effet de brillance de la peau.

Le MEDL7DW a deux niveaux différents de grossissement (environ 20x à environ 45x) sans la nécessité de changer la distance à la peau. Si le bouchon supplémentaire est utilisé, il est également possible de prendre une image avec une plus grande surface avec un grossissement de 10x environ. Le MEDL7DW se distingue également de la MEDL4DW par le boîtier métallique élégant. Le Dino-Lite DermaScope® Polarizer HR est adapté pour tous les dermatologues, mais il est généralement acheté dans la clinique, ce qui impose des exigences supplémentaires sur l'équipement et demande les dernières fonctionnalités et capacités.


USBMag 10 2205 megapixel EDOFEDRAMR PolariserFLC


Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Polarizer Yes, linear
Optics
Magnification 10-50x
Lens type Glass with Anti-Reflection coating
Sensor
Sensor type CMOS
Resolution 5 Megapixel (2592x1944)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV (max 1.3MP)
Imaging standards DirectShow, UVC
Housing
Housing material Aluminium alloy housing
Magnification lock Yes
Dimensions 10.5 cm (L) x 3.2 cm (D)
Weight 140 g
Cable length 1.8 m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
Information
Package contents Microscope, carry pouch, software CD, user manual, N3C-C- Closed cap, N3C-L- Long cap
Warranty information 2 years European warranty
Accessory range: Dino-Lite DermaScope
Regulatory approval: Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745
Price range €900,00 - €1100,00
