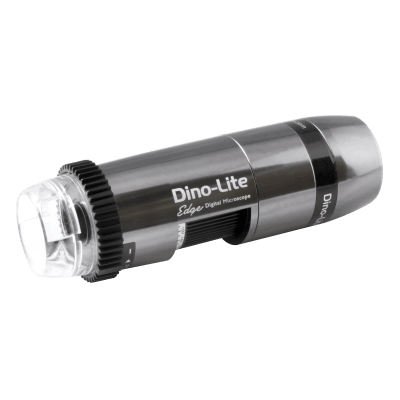

AM5218MZTL Edge

Marque: Dino-Lite
Code produit: AM5218MZTL Edge

Le Dino-Lite AM5218MZTL Edge peut être connecté directement à un téléviseur HD ou un moniteur LCD via une interface numérique DVI/HDMI directe. Il offre une résolution nette et éclatante en HD 720p pour afficher les moindres détails.


USBMag 10 220 EDOFEDRAMR PolariserPolariser


Enplus de la longue distance de travail du AM5218MZTL Edge allant jusqu'à 15 centimètres, il est le choix idéal dans les situations où les images en temps réel sont essentielles, comme pour travailler sur les PCB ou d'autres objets miniatures. En appuyant sur le capteur Microtouch sur le microscope, l'image peut être gelée pour l'inspection des détails importants et en appuyant sur le capteur Microtouch pendant 2 secondes les voyants lumineux peuvent être activés et désactivés. Le boîtier en aluminium offre une protection et une durabilité accrues et a le meilleur aspect et convivialité. Le polariseur réglable intégré réduit l'éblouissement et les reflets sur des objets brillants, comme les surfaces métalliques, électroniques, plastiques, etc.

MAGNIFICATION RATE WORKING DISTANCE FIELD OF VIEW(X) FIELD OF VIEW(Y) DEPTH OF FIELD
10 234.5 39 23.4 12
20 112.5 19.5 11.7 4.5
30 72.5 13 7.8 3.1
40 54.5 9.8 5.9 1.8
50 43.5 7.8 4.7 1.2
60 37.5 6.5 3.9 0.9
70 33.7 5.6 3.4 0.6
80 31.3 4.9 3 0.5
90 29.9 4.3 2.6 0.37
100 29.2 3.9 2.3 0.28
110 29.1 3.5 2.1 0.22
120 29.3 3.3 2 0.17
130 29.8 3 1.8 0.12
140 30.5 2.8 1.7 0.09
Listed values may differ slightly       Unit = mm
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Emission filter No
Polarizer Yes, linear
Optics
Magnification 10-140x
Macro zoom No
Working distance Long
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution HD 720p
Maximum frame rate 60 fps
Compatibility
Interface DVI & HDMI
Wifi No
Housing
Housing material Metal housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 140g
Cable length 1.8m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
ESD safe Yes
Information
Package contents Microscope, carry pouch, DVI & HDMI cable, power adapter, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €900,00 - €1100,00
