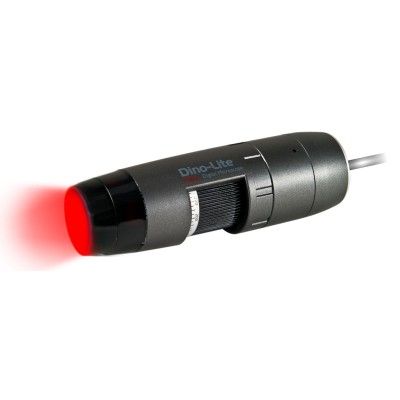

AM4115T-DFRW

Marque: Dino-Lite
Code produit: AM4115T-DFRW

Le microscope numérique Dino-Lite AM4115T-DFRW est optimisé pour la recherche et la visualisation des objets fluorescents en utilisant des 620nm témoins lumineux. Il dispose d'un filtre d'émission passe-longue de type 650nm qui est conçu pour observer un large éventail de fluorophores avec des applications en biologie du développement, en pathologie et en anatomie.


USBMag 10 2205 megapixel

EDOFEDRAMR

FLC


 Le AM4115T-DFRW a la capacité de commuter la source de lumière des 620nm voyants lumineux de rayonnement ultraviolet proche au voyant lumineux blanc, ce qui est pratique pour localiser l'objet et obtenir une mise au point facile. Tous ces facteurs font du AM4115T-DFRW le plus petit microscope à fluorescence dans le monde, capable de nombreuses applications et de visualiser un large spectre de fluorescence.

»  Modèles spéciaux disponibles sur demande.

MAGNIFICATION RATEworking distanceFIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
Listed values may differ slightly
* Without front cap     Unit = mm
20 60.2 19.5 15.6 2.5
30 33.5 13.0 10.4 1.8
40 20.9 9.8 7.8 1.5
50 13.9 7.8 6.3 -
60 9.7 6.5 5.2 -
70 7.1 5.6 4.5 1.0
80 5.5 4.9 3.9 -
90 4.5 4.3 3.5 -
100 4.1 3.9 3.1 -
110 4.0 3.6 2.8 -
120 4.1 3.3 2.6 -
130 4.5 3.0 2.4 -
140 5.0 2.8 2.2 -
150 5.6 2.6 2.1 -
160 6.3 2.4 2.0 -
170 7.1 2.3 1.8 -
180 8.0 2.2 1.7 -
190 8.9 2.1 1.6 -
200 9.9 2.0 1.6 -
210 10.9 1.9 1.5 -
220 11.9 1.8 1.4 0.1

Lighting
Light/ LED type 620nm excitation + white
Number of LEDs 7 FL + 1 White
LED on/off switchable: Yes
Infrared filter No
Diffuser available No
Emission filter 650nm, LP
Polarizer No
Fluorophores Cy5
Optics
Magnification 20-220x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 105g
Cable length 1.8m
Features
Special feature No
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, carry pouch, software CD, calibration target, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €550,00 - €750,00
