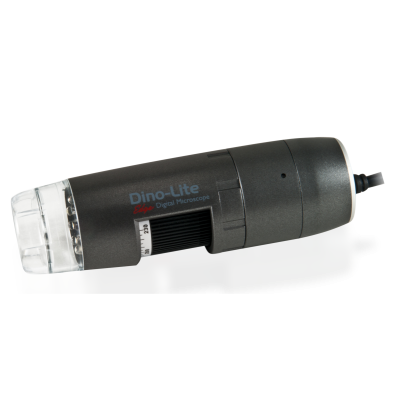

AM5216TF
Marque:
Dino-Lite
Code produit:
AM5216TF
Conçu pour offrir une distance de travail extra-longue, la série D-sub AM5216TF de Dino-Lite Edge offre une distance de vision minimale de 108 mm à un grossissement maximal de 70X. Grâce à une connexion directe aux moniteurs VGA, le AM5216TF peut convenir parfaitement à l'inspection, au contrôle de la qualité, à l'analyse des défaillances, etc.
Les principales caractéristiques de l'AM5216TF sont :
• Distance de travail extra-longue
• Haute résolution optique
• Interface D-sub
• Bouton Microtouch
• Capuchons avant interchangeables
• Et plus encore...
| MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW(X) | FIELD OF VIEW(Y) | DEPTH OF FIELD |
|---|---|---|---|---|
| Listed values may differ slightly | Unit = mm | |||
| 10 | 503 | 39.1 | 31.3 | 31.49 |
| 20 | 271 | 19.5 | 15.6 | 8.67 |
| 30 | 196 | 13.0 | 10.4 | 4.20 |
| 40 | 159 | 9.8 | 7.8 | 2.56 |
| 50 | 135 | 7.8 | 6.3 | 1.76 |
| 60 | 120 | 6.5 | 5.2 | 1.31 |
| 70 | 108 | 5.6 | 4.5 | 1.03 |
| Lighting | |
|---|---|
| Light/ LED type | White |
| Number of LEDs | 8 |
| LED on/off switchable: | Yes |
| Emission filter | No |
| Polarizer | No |
| Optics | |
| Magnification | 10x-70x |
| Macro zoom | Yes |
| Working distance | Long |
| Lens type | Glass with anti-reflection coating |
| Sensor | |
| Sensor type | CMOS |
| Resolution | 1280x720 (720p) |
| Maximum frame rate | 60 fps |
| Compatibility | |
| Interface | VGA (D-Sub) |
| Housing | |
| Housing material | Composite/ plastic housing |
| Magnification lock | No |
| Dimensions | 10.5cm (H) x 3.2cm (D) |
| Weight | 105g |
| Features | |
| Special feature | No |
| Measurement | No |
| Calibration | No |
| Microtouch sensor | Yes |
| ESD safe | No |
| Information | |
| Package contents | Microscope, carry pouch, power adapter, front cover box, user manual |
| Warranty information | 2 years European warranty |
| Regulatory approval: | CE, FCC, ROHS |
| Price range | €519,00 - €719,00 |
