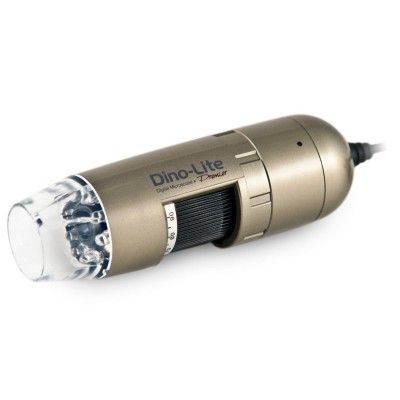

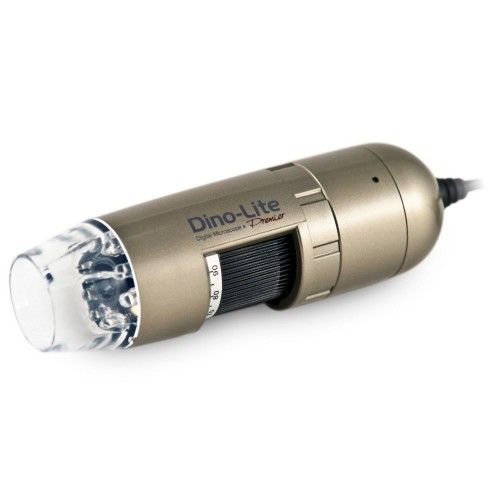

AM3713TB

Brand: Dino-Lite
Product Code: AM3713TB

The Dino-Lite Premier AM3713TB with stroboscopic light feature takes perfect pictures by reducing motion blur, even under higher magnification. The strobomicroscope technology enables the user to capture fast moving objects in a very easy and convenient way.


USBMag 10 2205 megapixel EDOFEDRAMR FLC


It can be used for monitoring production lines in a manufacturing environment, observing living creatures in a laboratory environment or any other application with fast-moving objects. The AM3713TB has a very high refresh rate of 60fps. The stroboscopic light mode can be switched on and off.

The strobosmicroscope technology is effective between 3cm to 15cm and under low ambient lighting. Works best with lighting less than 20 LUX and non effective over 80 LUX.

MAGNIFICATION RATEWORKING DISTANCEFIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
Listed values may differ slightly       Unit = mm
20 51.7 21.0 15.7 8
30 24.1 14.0 10.5 4
40 11.0 10.5 7.9 2.5
50 3.8 8.4 6.3 2
60 -0.6 7.0 5.2 -
200 -0.4 2.1 1.6 0.45
210 0.6 2.0 1.5 -
220 1.7 1.9 1.4 -
230 2.8 1.8 1.4 0.42
Lighting
Light/ LED type Stroboscopic
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Emission filter No
Polarizer No
Optics
Magnification 10-70x, 200x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution VGA (640x480)
Maximum frame rate 60 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11
Included software DinoCapture 2.0 (Windows)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Imaging standards DirectShow, UVC
Wifi No
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 105g
Cable length 1.8m
Features
Special feature No
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, carry pouch, software CD, calibration target, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €200,00 - €350,00
