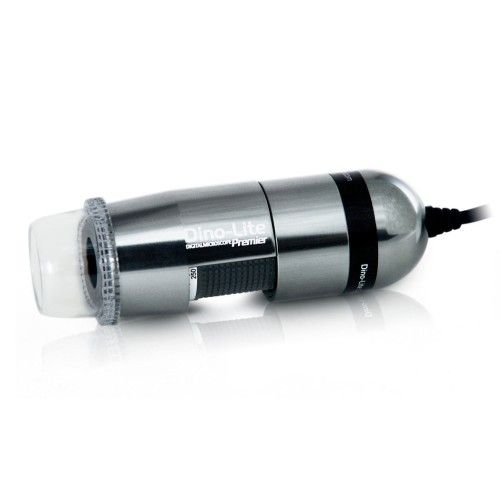

DermaScope® Polarizer HR 200x (MEDL7DM)

Product Code: MEDL7DM

The Dino-Lite DermaScope® Polarizer HR 200x (MEDL7DM) has a 5 megapixel camera and magnifications of 10 to 70x and around 200x. Also this model DermaScope® features a built-in and fully adjustable polarization filter to reduce the gloss effect of the skin. The MEDL7DM also stands out from the MEDL4DM by the sleek metal casing.

The Dino-Lite DermaScope® 200x models are special models at a much higher magnification, which is often used for specialized dermatological applications or, for example, the analysis of skin biopsies. Because of the high magnification of this model suspicious nevi can be analysed with more accuracy. In practice, this model is used for the analysis and interpretation of biopsies and other preparations, in short, more for laboratory research.


USBMag 10 2205 megapixel EDOFEDRAMR


Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Polarizer Yes, linear
Optics
Magnification 10-70x, 200x
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 5 Megapixel (2592x1944)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV (max 1.3MP)
Imaging standards DirectShow, UVC
Housing
Housing material Aluminium alloy housing
Magnification lock No
Dimensions 10.5 cm (L) x 3.2 cm (D)
Weight 140g
Cable length 1.8m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
Information
Package contents Microscope, carry pouch, software CD, user manual
Warranty information 2 years European warranty
Regulatory approval Medical Device Class 1 – Medical Devices Regulation (EU) 2017/745
Price range €800,00 - €1000,00
