AM4013MT

Brand: Dino-Lite
Product Code: AM4013MT

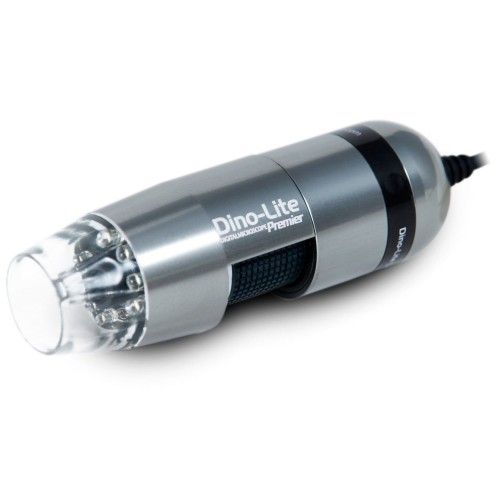

The Dino-Lite AM4013MT is a convenient, easy to use, professional handheld digital microscope providing superior image quality with up to 200x optical magnification.


USBMag 10 2205 megapixel EDOFEDRAMR Polariser


It is equipped with a high quality 1.3 Megapixels sensor with a crystal clear image quality and natural color reproduction, enabling you to view and capture objects with the greatest level of detail. This model comes with the DinoCapture 2.0 software for Windows and DinoXcope software for MacOS, allowing you to do calibrated measurements on pictures taken with the Dino-Lite. The aluminum housing offers enhanced protection and durability and has the best look and feel.

MAGNIFICATION RATE WORKING DISTANCE FIELD OF VIEW(X) FIELD OF VIEW(Y) DEPTH OF FIELD
20 48.7 19.6 15.6 3.6
30 21.7 13.0 10.4 1.9
40 9.0 9.8 7.8
50 1.9 7.8 6.3 0.88
60 -2.3 6.5 5.2
220 -0.1 1.8 1.4 0.2
230 1.0 1.7 1.4
240 2.1 1.6 1.3
Listed values may differ slightly       Unit = mm
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Emission filter No
Polarizer No
Optics
Magnification 20-50x, 200x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7,8,10 & 11, MacOS 10.9 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing material Metal housing
Magnification lock No
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 140g
Cable length 1.8m
Features
Special feature No
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe Yes
Information
Package contents Microscope, Carry pouch, software CD, calibration target, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €350,00 - €550,00
