AF4115ZTL

Brand: Dino-Lite
Product Code: AF4115ZTL

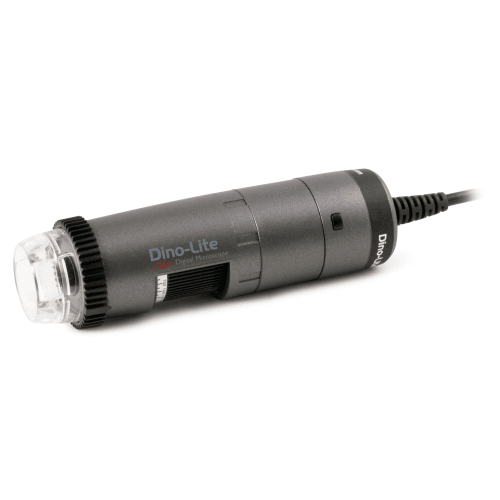

The Dino-Lite AF4115ZTL is part of Long Working Distance (LWD) series and connects to your device via USB. The AF4115ZTL is Wireless-ready, but requires the (optional) WF-20 to make it a fully wireless solution.


USBMag 10 2205 megapixel EDOFEDRAMR EDR


The AF4115ZTL is equipped with premium features such as Flexible LED Control (FLC), integrated polarizer, extensive measurement functionality.

The main features of the AF4115ZTL are:

• Wireless-ready, requires the WF-20 adapter (optional)
• 10-140x magnification
• 1.3 Megapixel Edge sensor
• Integrated polarizer (anti-reflection)
• Extensive measurement functionality
• Flexible LED Control (FLC)
• And more...

Magnification RateWorking Distance *  Field of View(x)  Field of View(y)  Depth of Field
Listed values may differ slightly
* Without front cap     Unit = mm
10 234.5 39.0 31.2 12
20 112.5 19.5 15.6 4.5
30 72.5 13.0 10.4 3.1
40 54.5 9.8 7.8 1.8
50 43.5 7.8 6.2 1.2
60 37.5 6.5 5.2 0.9
70 33.7 5.6 4.5 0.6
80 31.3 4.9 3.9 0.5
90 29.9 4.3 3.5 0.37
100 29.2 3.9 3.1 0.28
110 29.1 3.5 2.8 0.22
120 29.3 3.3 2.6 0.17
130 29.8 3.0 2.4 0.12
140 30.5 2.8 2.2 0.09


Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available Yes (N3C-D included)
Emission filter No
Polarizer Yes, linear
Optics
Magnification 10-140x
Macro zoom No
Working distance Long
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.12 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-20 adapter (optional)
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 11.4cm (L) x 3.3cm (D)
Weight 111g
Cable length 1.8m
Features
Special feature Flexible LED Control (FLC)
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €500,00 - €600,00
