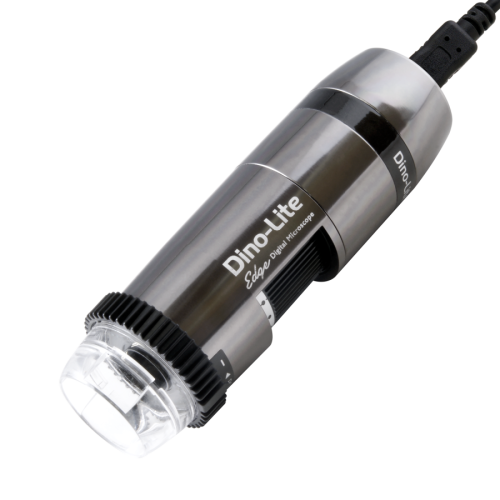

AM4917MZT4

Brand: Dino-Lite
Product Code: AM4917MZT4

As magnification increases, targets with uneven surfaces are often out of focus due to the limited depth of field. AM4917MZT4 400x digital microscope eases focusing with its click-to-focus functionality and can generate focused-stacked images with EDOF. Delivering superior images, equipped with a polarizer, and featuring EDOF, DPQ, AMR, and EDR, AM4917MZT4 is a quality imaging tool ready for a wide range of applications.

Note: EDOF, EDR, and DPQ are available on Windows PC only.


EDOFEDRAMRmag-lock1.3 megapixel

exch-capDPQeflcMag Poleraizer


The main features of the AM4917MT8 are:

• 1.3 Megapixels
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Enhanced Flexible LED Control (eFLC)
• Integrated polarizer (anti-reflection)
• 400x-470x magnification
• And more...

(*EDOF/EDR only functions under Windows OS)

MAGNIFICATION RATE WORKING DISTANCE *   FIELD OF VIEW(X)   FIELD OF VIEW(Y)   DEPTH OF FIELD

400

5.68

0.977

0.732

0.041

410

6.63

0.953

0.715

0.040

420

7.59

0.93

0.698

0.039

430

8.55

0.909

0.681

0.038

440

9.51

0.888

0.666

0.038

450

9.62

0.868

0.651

0.037

460

9.56

0.849

0.637

0.036

470

9.50

0.831

0.623

0.036

Listed values may differ slightly * Without front cap   Unit = mm
Lighting
Light/ LED type White
Number of LEDs 8
Optics
Magnification 400x ~ 470x
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280 x 960)
Maximum frame rate 30 fps in 1.3 MP, MJPEG 30 fps in VGA, MJPEG
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.12 and up
Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) PNG, JPEG
Supported video formats (MacOS) MOV
Housing
Housing material Metal housing
Dimensions 10.7 cm (H) x 3.3 cm (D)
Weight 130 g
Features
Measurement Yes
Calibration Yes
Microtouch sensor Yes
Information
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €1200,00 - €1400,00
