AM4517MT-RFYW
Merk:
Productcode:
AM4517MT-RFYW

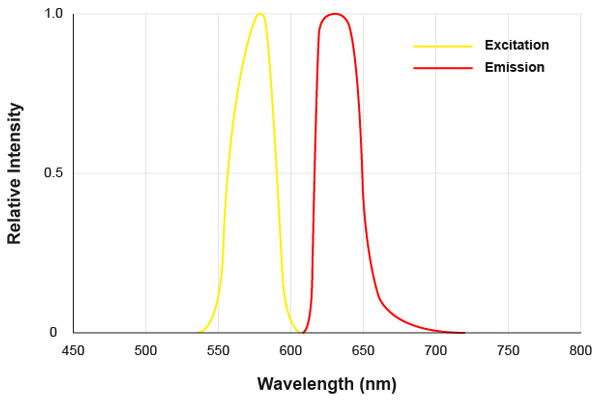

Detecteer rode fluorescentie-emissies met de AM4517MT-RFYW high-sensitivity 20x ~ 220x digitale microscoop. Deze microscoop beschikt over 575 nm excitatieverlichting en een 615 nm ~ 650 nm emissiefilter, waarmee emissies van fluorescentieprobes zoals mCherry, Alexa Fluor 594 en Texas Red kunnen worden vastgelegd. Dit model is uitgerust met AMR om metingen te vergemakkelijken.
The main features of the AM4517MT-RFYW are:
- 1.3 Megapixel
- High Sensitivity Sensor
- Red Fluorescence Detection
- Switchable White Light
- Automatic Magnification Readout (AMR)
- Robust Metal Housing
| Magnification Rate | Working Distance * | Field of View(x) | Field of View(y) | Depth of Field |
|---|---|---|---|---|
| Listed values may differ slightly |
* Without front cap | Unit = mm | ||
| 20x | 59.8 | 19.53 | 14.65 | 7.05 |
| 30x | 33.1 | 13.02 | 9.77 | 3.36 |
| 40x | 20.5 | 9.77 | 7.32 | 2.02 |
| 50x | 13.4 | 7.81 | 5.86 | 1.38 |
| 60x | 9.2 | 6.51 | 4.88 | 1.01 |
| 70x | 6.7 | 5.58 | 4.19 | 0.79 |
| 80x | 5.1 | 4.88 | 3.66 | 0.64 |
| 90x | 4.1 | 4.34 | 3.26 | 0.53 |
| 100x | 3.7 | 3.91 | 2.93 | 0.45 |
| 110x | 3.6 | 3.55 | 2.66 | 0.39 |
| 120x | 3.7 | 3.26 | 2.44 | 0.34 |
| 130x | 4.1 | 3.01 | 2.25 | 0.30 |
| 140x | 4.5 | 2.79 | 2.09 | 0.27 |
| 150x | 5.2 | 2.60 | 1.95 | 0.25 |
| 160x | 5.9 | 2.44 | 1.83 | 0.22 |
| 170x | 6.7 | 2.30 | 1.72 | 0.21 |
| 180x | 7.5 | 2.17 | 1.63 | 0.19 |
| 190x | 8.5 | 2.06 | 1.54 | 0.18 |
| 200x | 9.4 | 1.95 | 1.46 | 0.16 |
| 210x | 10.5 | 1.86 | 1.40 | 0.15 |
| 220x | 11.5 | 1.78 | 1.33 | 0.14 |
| Verlichting | |
|---|---|
| Licht / LED-type | 575 nm excitation + white |
| Aantal leds | 7 FL + 1 White |
| LED aan / uit schakelbaar: | Yes |
| Infrarood filter | No |
| Diffusor beschikbaar | No |
| Emissiefilter | 615 nm ~ 650 nm |
| Polarisator | No |
| Fluorophores | mCherry, Alexa Fluor 594, and Texas Red |
| Optiek | |
| Magnification | 20x ~ 220x |
| Werkafstand | Standard |
| Type lens | Glass with anti-reflection coating |
| Sensor | |
| Sensortype | CMOS |
| Resolutie | 1.3 Megapixel (1280 x 960) |
| Maximale framesnelheid | 30 fps |
| Compatibiliteit | |
| Interface | USB 2.0 |
| Besturingssysteem | Windows 7, 8, 10 & 11, MacOS 10.9 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Ondersteunde beeldformaten (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Ondersteunde videoformaten (Windows) | WMV, FLV, SWF |
| Ondersteunde beeldformaten (MacOS) | JPEG, PNG |
| Ondersteunde videoformaten (MacOS) | MOV |
| Behuizing | |
| Materiaal van de behuizing | Metal housing |
| Vergrotingsslot | Yes |
| Afmetingen | 104 mm (H) x 32 mm (D) |
| Gewicht | 90g |
| Kabellengte | 1.8m |
| Kenmerken | |
| Bijzonderheid | Automatic Magnification Readout (AMR) |
| Meting | Yes |
| Kalibratie | Yes |
| Microtouch-sensor | Yes |
| Informatie | |
| Inhoud van de verpakking | Microscope, carry pouch, calibration target, user manual, N3C-C (Close Cap) N3C-EB (Extended Open Black Cap) N3C-LB (Black Long Cap) N3C-OB (Black Open Cap) |
| Garantie-informatie | 2 years European warranty |
| Regelgevende goedkeuring | CE, FCC, ROHS |
| Prijsklasse | €1200,00 - €1400,00 |
