WF-20

Brand:
Product Code: WF-20

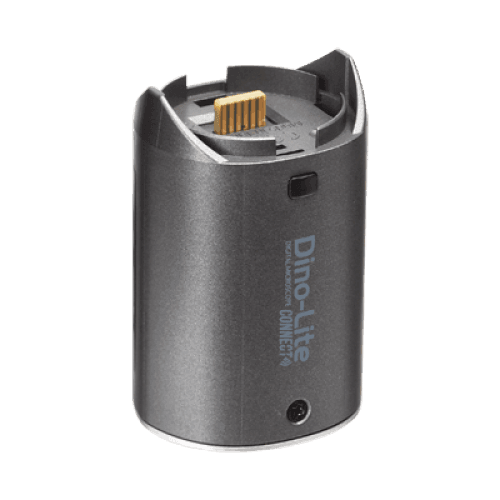

Coupling with Dino-Lite AF series, the WF-20 is a Wi-Fi streamer adding further versatility, flexibility, and agility to Dino-Lite microscope. Thanks to stable image transmission and long battery life (more than 2,5 hours), the WF-20 is well suited but not limited to field applications. The WF-20 can also be configured as a wireless router for staying connected with internet or a network during usage.

The WF-20 allows AF microscope models to be used wirelessly in connection with an iOS (iPhone/iPad) or Android app on any tablet, smartphone or even in the DinoCapture 2.0 software for Windows computers. The WiFi streamer is ideal for field work or presentations and can stream from one Dino-Lite to multiple devices. When using the iOS app or DinoCapture, users can perform measurements and take advantage of the automatic magnification reading (AMR) with compatible Dino-Lite AMR and measurement models. The WF-20 can be used anywhere to create a WiFi signal for streaming the Dino-Lite live images. The free DinoConnect App for WF-10 can be downloaded from the App Store or Google Play.

For (non "AF") USB microscope models see the WF-10 for wireless options.


Download the WF-20 instruction manual

goole-play appstore

Compatibility
Operating system Windows 7, 8, 10 & 11, iOS 8.0 or later, Android 4.4 or later
Software DinoCapture 2.0 (Windows), DinoConnect App
Compatible with: AF4x15 & AF7x15 series
Housing
Dimensions 58mm (L) x 36mm (W) x 32mm (H)
Weight 57 g
Features
ESD safe No
Frequency: 2.412GHz~2.485GHz
Information
Package contents WF-20 WiFi streamer, user manual, mini USB charging cable, integrated Li-Ion battery
Warranty information 2 years European warranty
Accessory range: Wireless
Price range €250,00 - €400,00
