AM4515T4-GFBW

Brand: Dino-Lite
Product Code: AM4515T4-GFBW

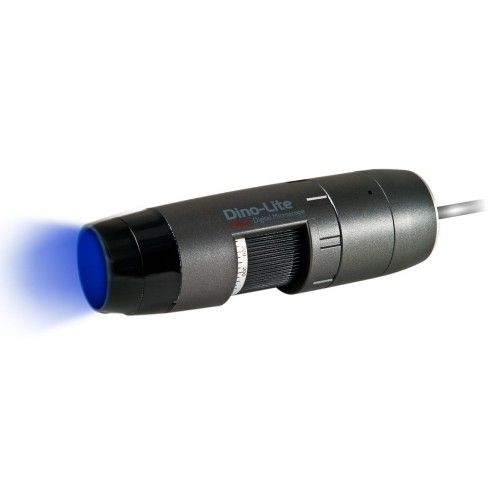

The Dino-Lite AM4515T4-GFBW digital microscope is optimized for research and viewing fluorescent objects by using 480nm excitation LEDs. It has a long-pass type 510nm emission filter that is designed to observe a wide range fluorophores with applications in developmental biology, pathology, and anatomy. With its high magnification of 400~470x, it reveals even the smallest details on all kinds of objects.


USBMag 10 2205 megapixel

EDOFEDRAMR

FLC


 The AM4515T4-GFBW has the capability of switching the light source from the 480nm excitation LEDs to the white LED, which is convenient for locating the object and obtaining an easy focus. All of these factors make the AM4515T4-GFBW the smallest fluorescence microscope in the world, capable of many applications and visualizing a vast range of fluorescence.

» Special models available on request.

MAGNIFICATION RATEWORKING DISTANCE *FIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
Listed values may differ slightly
* Without front cap     Unit = mm
400 5.1 0.971 0.713 0.0261
410 6.0 0.951 0.697 -
420 7.3 0.926 0.680 -
430 8.0 0.905 0.664 -
440 8.8 0.884 0.648 -
450 10.0 0.867 0.636 -
460 11.3 0.847 0.621 -
470 11.8 0.828 0.608 0.0289

Lighting
Light/ LED type 480nm excitation + white
Number of LEDs 7 FL + 1 White
LED on/off switchable: Yes
Infrared filter No
Diffuser available No
Emission filter 510nm, LP
Polarizer No
Fluorophores GFP, FITC
Optics
Magnification 400-470x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 1.3 Megapixel (1280x1024)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 105g
Cable length 1.8m
Features
Special feature Automatic Magnification Reading (AMR)
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, carry pouch, software CD, calibration target, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €550,00 - €750,00
