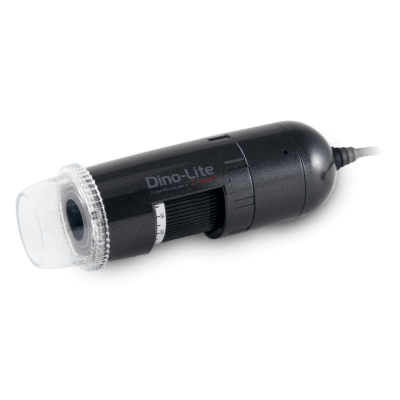

AM4116ZTL

Brand: Dino-Lite
Product Code: AM4116ZTL

The Dino-Lite AM4116ZTL connects directly to a VGA screen via a VGA (D-SUB) connector. It offers a high frame rate of up to 60fps at 800x600 resolution and has enhanced low light visibility so you can see clearly in any situation.


USBMag 10 2205 megapixel


Polariser


The built-in adjustable polarizer reduces glare and reflection on shiny objects. Together with the long working distance of up to 15 centimetres the AM4116ZTL is the ideal choice in situations, where real time images are vital, such as working on PCB's or other miniature objects.The LEDs can be switched on and off by using the Microtouch sensor on the microscope.



MAGNIFICATION RATEWORKING DISTANCEFIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
Listed values may differ slightly       Unit = mm
20 151.0 21.0 15.7 6
30 101.0 14.3 10.5 3.4
40 77.2 10.5 7.9 2.2
50 64.1 8.4 6.3 1.65
60 56.2 7.0 5.2 -
70 51.3 6.0 4.5 -
80 48.3 5.0 3.9 -
90 46.6 4.0 3.5 0.8
Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Emission filter No
Polarizer Yes, linear
Optics
Magnification 10-90x
Macro zoom No
Working distance Long
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 800x600 pixels
Maximum frame rate 60 fps
Compatibility
Interface VGA (D-Sub)
Wifi No
Housing
Housing material Composite/ plastic housing
Magnification lock Yes
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 95g
Cable length 0.6m
Features
Special feature No
Measurement No
Calibration No
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, carry pouch, power adapter, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €350,00 - €550,00
