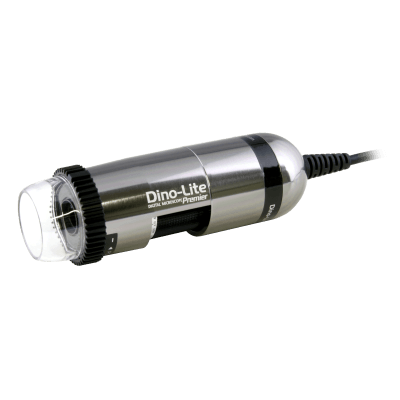

AM7013MZT4

Brand: Dino-Lite
Product Code: AM7013MZT4

The Dino-Lite AM7013MZT4 has a 5 megapixel sensor for crystal clear images. With its high magnification of 400~470x, it reveals even the smallest details on all kinds of objects. The built-in adjustable polarizer reduces glare and reflection on shiny objects.


USBMag 10 220

EDOFEDRAMR

PolariserPolariser


Because of the very high resolution, the AM7013MZT4 is the ideal solution for displaying microscopic images on large screens or using the microscopic images for printing.



MAGNIFICATION RATEWORKING DISTANCEFIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
Listed values may differ slightly       Unit = mm
430 -0.45 0.92 0.69 0.1
440 0.4 0.9 0.67 0.1
450 1.35 0.88 0.66 0.1
460 2.3 0.86 0.65 0.1
470 3.15 0.84 0.63 0.1



Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Emission filter No
Polarizer Yes, linear
Optics
Magnification 400-470x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution 5 Megapixel (2592x1944)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7,8,10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV (max 1.3MP)
Imaging standards DirectShow, UVC
Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing material Metal housing
Magnification lock No
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 140g
Cable length 1.8m
Features
Special feature No
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe Yes
Information
Package contents Microscope, carry pouch, software CD, calibration target, ZT-Z-CC1 cap closure, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €550,00 - €750,00
