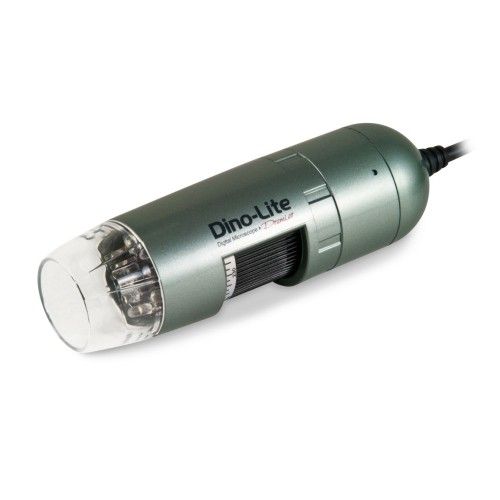

AM3113T

Brand: Dino-Lite
Product Code: AM3113T

The AM3113T has both the measurement functions and the Microtouch button to capture pictures directly from the Dino-Lite. The improved image sensor provides a high quality image with very natural colors and it also offers a high refresh rate for better real time images. It is an affordable solution for industrial, scientific and business use.


USBMag 10 2205 megapixel

EDOFEDREDR




MAGNIFICATION RATEWORKING DISTANCEFIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
Listed values may differ slightly       Unit = mm
20 51.7 21.0 15.7 8
30 24.1 14.0 10.5 4
40 11.0 10.5 7.9 2.5
50 3.8 8.4 6.3 2
60 -0.6 7.0 5.2 -
200 -0.4 2.1 1.6 0.45
210 0.6 2.0 1.5 -
220 1.7 1.9 1.4 -
230 2.8 1.8 1.4 0.42



Lighting
Light/ LED type White
Number of LEDs 8
LED on/off switchable: Yes
Infrared filter IR cut-filter >650 nm
Diffuser available No
Emission filter No
Polarizer No
Optics
Magnification 10-70x, 200x
Macro zoom No
Working distance Standard
Lens type Glass with anti-reflection coating
Sensor
Sensor type CMOS
Resolution VGA (640x480)
Maximum frame rate 30 fps
Compatibility
Interface USB 2.0
Operating system Windows 7, 8, 10 & 11, MacOS 10.9 and up
Included software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) WMV, FLV, SWF
Supported image formats (MacOS) JPEG, PNG
Supported video formats (MacOS) MOV
Imaging standards DirectShow, UVC
Wifi No
Housing
Housing material Composite/ plastic housing
Magnification lock No
Dimensions 10.5cm (L) x 3.2cm (D)
Weight 105g
Cable length 1.8m
Features
Special feature No
Measurement Yes
Calibration Yes
Microtouch sensor Yes
ESD safe No
Information
Package contents Microscope, Carry pouch, software CD, calibration target, user manual
Warranty information 2 years European warranty
Regulatory approval CE, FCC, ROHS
Price range €0 - €200,00
